Dependable Assortment of Horizontal Pipe Lifting Clamp

Top Quality horizontal pipe lifting clamp is a specialized tool used for securely gripping and lifting horizontal pipes in industrial and construction settings. It features a secure clamping mechanism and a lifting attachment point

Horizontal Pipe Lifting Clamp

Standard: EN 13155
Alloy steel plate construction.
Equipped with a convenient handle.
Equipped with a Bolt Type (Model G-2130) Shackle.
Non marring inserts available.
Used in pairs with 45° - 60° horizontal angle or 60° - 90° included angle Compact and lightweight in design.
Teflon Pad replacements parts are available and easy to change
Fitted with Screw pin bolt & Nut shackle
Forged on Alloy steel plate
Replacable Teflon pad inserts are fitted to reduce impact to edge of pipe and pipe threads

The Toyolift PLC pipe lifting clamps provide a durable are used in sets of two for the horizontal transportation of pipe sections. Attachment and removal of the clamps from the pipe is extremely easy due to the simple and straightforward design. The working load limits shown on the technical parameter table are based on a set of two clamps used together. Pipe Hooks provide a fast and efficient method for lifting pipe, tube or any similarly shaped fabrications. Compact shape and relatively low unit weight with high lifting W.L.L. It can only be used in pairs using a two-leg sling or spreader beam.

Parameters

HORIZONTAL PIPE LIFTING CLAMP (Supplied with Shackle)
Model	Capacity PerPair (Ton)	Jaw opening(R) (mm)	Dimensions (mm)						Weight
Model	Capacity PerPair (Ton)	Jaw opening(R) (mm)	A	B	C	D	E	F	Kg
TL-PLC015	1.5	40	125	30	220	70	35	27	2
TL-PLC030	3	40	140	32	228	70	35	27	2.9
TL-PLC040	4	50	145	32	228	70	40	30	4
TL-PLC060	6	50	150	35	232	70	40	30	5
TL-PLC080	8	70	155	35	260	70	40	30	6.7
TL-PLC120	12	70	175	35	322	70	45	33	10
TL-PLC160	16	70	175	35	322	70	55	40	13

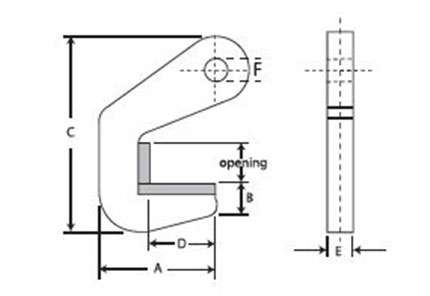

Technical Drawing

Download Product Datasheet
