Dependable Assortment of Safety Pin Shackles from 1 Ton to 200 Tons

Top Quality Safety Pin Shackles. We have years of experience and a skilled team to understand and execute standard and customized solutions to all your requirements. We are committed to offering you the best quality at the most competitive price
safety-pin-shackle-img1
  • Standard: In accordance with EN 13889. These items meet the performance requirements of US FED Specification

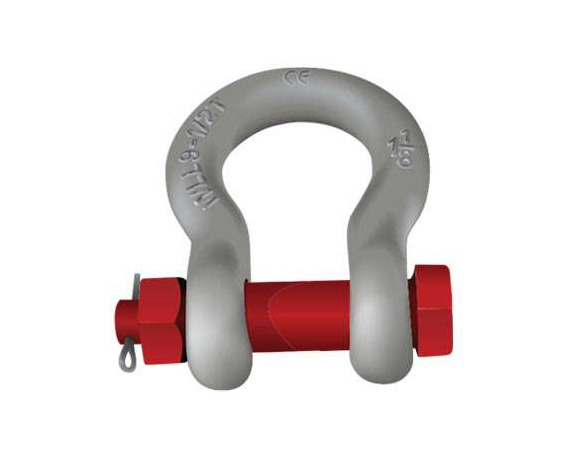

Safety Pin Shackle 2130

Toyolift Shackles are used in lifting actions and static systems as removable links to connect (steel) wire rope, chain and other fittings. Screw pin shackles (TL209 and 210) are used mainly for non-permanent applications. Safety bolt shackles (TL2130) are used for long-term or permanent applications or where the load may slide on the pin causing rotation of the pin. Chain- or dee shackles are mainly used on one-leg systems whereas anchor- or bow shackles are mainly used on multi-leg systems. Toyolift offers a wide range of bow and dee shackles for a wide variety of applications. The range stretches from WLL 1 Ton to 250 Ton. This provides our customers with a very extensive range to choose a shackle that suits their application best. Most of the shackles are directly available from stock.

Details
  • Hot dipped galvanized
  • Marked with manufacturers mark, size, grade, ID mark and W.L.L.
  • Proof load tested to 2 times of the W.L.L.
  • Suitable for overhead lifting
  • Designed for frequent, non-permanent applications
  • Forged - Quenched and Tempered, with alloy pins
  • Working Load Limit and grade “6” permanently shown on every shackle
  • Minimum breaking load is 6 times the W.L.L
  • TL Shackles can be furnished proof tested with certificates.
  • Fatigue rated.
  • Meets or exceeds all requirements of ASME B30.26
Parameters
SAFETY PIN BOW SHACKLES TL 2130
FORGED ALLOY STEEL AND HOT DIP GALVANIZED, TOYOLIFT RED COLOR
Size S.W.L A B C D
Pin Dia. BOW Kgs/each
tons mm mm mm mm
3/8" 1.00 9.5 12 17 36.5 0.17
7/16" 1.50 11 12 18 42.5 0.25
1/2" 2.00 12.7 16 20.6 47.3 0.44
5/8" 3.25 16 19.8 27 60.5 0.79
3/4” 4.75 19 22 32 71.5 1.26
7/8” 6.50 22 27 36.6 84 1.88
1” 8.50 25 30 43 96 2.78
1 1/8” 9.50 28.5 33 46 108 3.87
1 1/4” 12.00 31.8 36 51.6 119 5.26
1 3/8” 13.50 34.9 39 57 133.5 6.94
1 1/2” 17.00 38 42 60 147 8.79
1 3/4” 25.00 44 52 73 178 14.99
2” 35.00 50 56 82 197 20.65
2 1/2” 55.00 63.5 68 105 267 41.05
3" 85.00 75 85 127 320 62.00
3 1/2 120 89 95 146 381 110
4" 150 102 108 165 400 160
4 3/4" 200 120 130 175 500 235
Drawings
Download Product Datasheet
