Dependable Assortment of Standard & Customized Manufactured Chain Slings, Multiple Leg Chain Slings to Suit Industry Specifications by Our Trained Workforce

Top Quality Chain Slings with Lifting hooks & a broad range of chain accessories., Available Chain Size Up to 32 mm. We have years of experience and a skilled team to understand and execute standard and customized solutions to all your requirements. We are committed to offering you the best quality at the most competitive price.

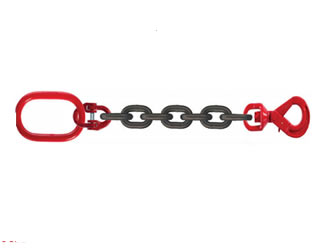

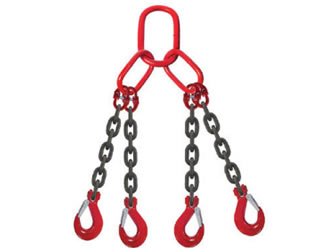

Chain Slings

Features

More than 250 tons of Grade 100 & Grade 80 chain in stock
Upto 32mm lifting chain in stock
Chains manufactured to EN 818-1 and Chain Slings to EN 818-4
Fittings from Excel, Green Pin, Tek Lift, Ropeblock, Crosby and GN Rope fittings

Head Room

The distance between the crane hook and the load is known as the "Head Room". If a specific head room is required the "Reach" of the chain sling must increase as the angle between the legs increases as shown below (left).

Reach or Effective Working Length (EWL)

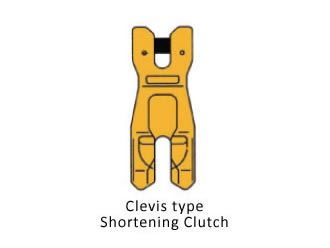

The reach of a chain sling is the distance between bearing points of the upper and lower terminal fittings. This distance, commonly known as the "Effective Working Length" should be quoted when ordering slings. Shortening clutches may be fitted to a sling, making the reach adjustable, hence increasing the versatility of the sling.

Load Estimation

In multi-leg slings, the angle between the legs is critical. The actual tension on each leg increases when the angle between the legs increases as shown in the diagram above. For this reason all general purpose chain slings are given a rating based upon use at 90° inc. angle. The included angle between the legs should never exceed 120°.

Chain Size (mm)	Single Leg	Two Leg		Three and Four Leg		Endless
Chain Size (mm)	Single Leg	0°-45°	45°-60°	0°-45°	45°-60°	Endless
7	1.5	2.12	1.5	3.15	2.24	2.5
8	2.0	2.8	2.0	4.25	3.0	3.15
10	3.15	4.25	3.15	6.7	4.75	5.0
13	5.3	7.5	5.3	11.2	8.0	8.5
16	8.0	11.2	8.0	17.0	11.8	12.5
20	12.5	17.0	12.5	26.5	19.0	20.0
22	15.0	21.2	15.0	31.5	22.4	23.6
26	21.2	30.0	21.2	45.0	31.5	33.5
32	31.5	45.0	31.5	67.0	47.5	50.0

Grade 80 & Grade 100 Chain

We provide Grade 80 & Grade 100 Chain & Complete Range of high-quality fittings for lifting chain and steel wire rope.

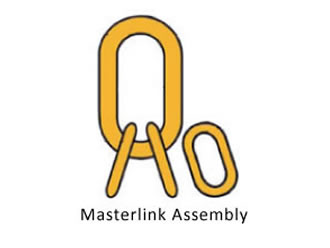

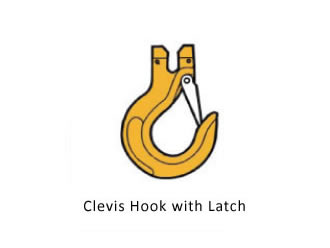

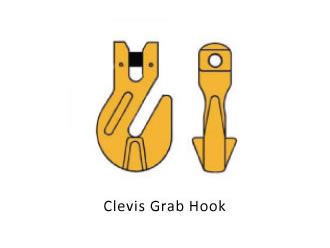

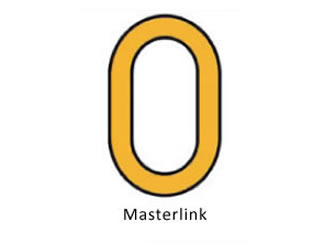

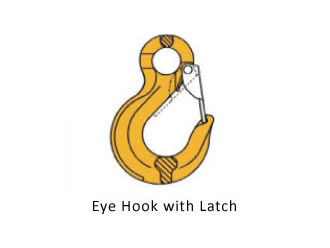

Grade 80 and grade 100 lifting hooks & range of chain accessories is very complete. Everything you need to make a chain assembly is in the Range. From the master link to the hook, whether this should be an eye-, swivel-, or clevis hook. And not only in grade 80, but almost every product can also be supplied in grade 100 or stainless steel.

The product line is used in many different lifting applications in various sectors like oil & gas, industry, mining, shipping and fishing.

Products comply with a wide range of internationally recognized standards and can be supplied with various certificates upon request.

We offer both standard and customized solutions for Chain Slings of Various Grades. Serving to Oil & Gas, Marine, Port, Ship Management, Construction, Transportation, Steel, Industrial and EPC Contractors. We are serving Worldwide Clients based in Dubai, United Arab Emirates UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Iraq, Kurdistan, Yemen, Lebanon, Jordan, Sudan, Egypt, Nigeria, Algeria, Angola, Kenya, Tanzania, South Africa, Morocco, Libya, Kazakhstan, Armenia, Azerbaijan, Turkmenistan, Tunisia, Ghana, Tanzania, Uzbekistan. We are Looking forward to fulfilling your expectations with the best of our product range. Our Excellent Logistics setup supports shipping of goods to major Cities Such As Dubai, Abu Dhabi, Al Ain, Sharjah, Ajman, Ras Al Khaimah, Fujairah, Doha, Muscat, Kuwait, Riyadh, Jeddah, Dhahran, Jubail And Yanbu, Baghdad, Basra, Mosul, Erbil, Sulaymaniyah, Manama, Beirut, Amman, Sanaa, Aden, Mukalla, Khartoum, Abuja, Algiers, Luanda, Nairobi, Dar es salaam, cape town, Durban, Johannesburg, Rabat, Tripoli, Benghazi, Misrata, Ashgabat, Almaty, Aktau, Yerevan, Baku, Accra, Lagos, Port Harcourt, Port Sudan, Tunis, Port of Mombasa, Dodoma, Dar Es Salaam, Aktobe, Tashkent, Balkanabat,Turkmenbashi, Kirkuk. We will be pleased to serve your requirements with the best of our products.
