Dependable Assortment of Screw Pin Shackles from 1 Ton to 55 Tons

Top Quality Screw Pin Shackles. We have years of experience and a skilled team to understand and execute standard and customized solutions to all your requirements. We are committed to offering you the best quality at the most competitive price

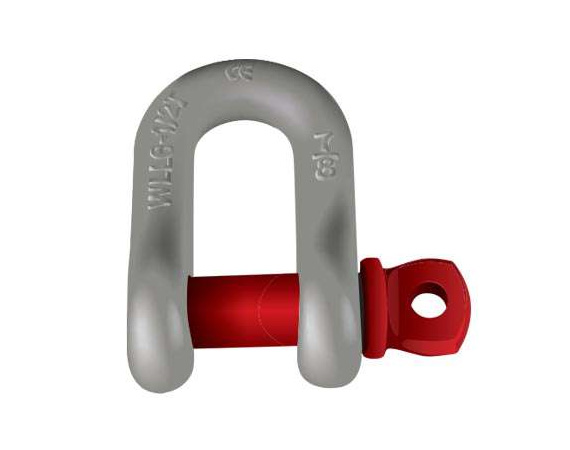

screw-pin-shackle-img1
  • Standard: In accordance with EN 13889. These items meet the performance requirements of US FED Specification
Screw Pin Shackle 209 & 210

Toyolift Shackles are used in lifting actions and static systems as removable links to connect (steel) wire rope, chain and other fittings. Screw pin shackles (TL209 and TL210) are used mainly for non-permanent applications. Safety bolt shackles (TL2130) are used for long-term or permanent applications or where the load may slide on the pin causing rotation of the pin. Chain- or dee shackles are mainly used on one-leg systems whereas anchor- or bow shackles are mainly used on multi-leg systems. Toyolift offers a wide range of bow and dee shackles for a wide variety of applications. The range stretches from WLL 1 Ton to 250 Ton. This provides our customers with a very extensive range to choose a shackle that suits their application best. Most of the shackles are directly available from stock.

Details
  • Hot dipped galvanized
  • Marked with manufacturers mark, size, grade, ID mark and W.L.L.
  • Proof load tested to 2 times of the W.L.L.
  • Suitable for overhead lifting
  • Designed for frequent, non-permanent applications
  • Forged - Quenched and Tempered, with alloy pins
  • Working Load Limit and grade “6” permanently shown on every shackle
  • Minimum breaking load is 6 times the W.L.L
  • TL Shackles can be furnished proof tested with certificates.
  • Fatigue rated.
  • Meets or exceeds all requirements of ASME B30.26
Parameters
SCREW PIN BOW SHACKLES TL 209
FORGED ALLOY STEEL AND HOT DIP GALVANIZED, TOYOLIFT RED COLOR SCREW PIN
Size S.W.L A B C D
Pin Dia. BOW DEE Kgs/each
Tons mm mm mm mm mm
3/8" 1.00 9.5 11 17 36.5 32 0.15
7/16" 1.50 11 12 18 42.5 36.5 0.21
1/2" 2.00 12.7 16 20.6 47.3 41.3 0.37
5/8" 3.25 16 19.8 27 60.5 51 0.65
3/4” 4.75 19 22 32 71.5 62 1.04
7/8” 6.50 21.7 27 36.6 84 74.8 1.56
1” 8.50 25.4 30 43 96 81 2.32
1 1/8” 9.50 28.5 33 46 108 90 3.28
1 1/4” 12.00 31.5 36 51.6 119 100.8 4.51
1 3/8” 13.50 34.9 39 57 133.5 112.5 5.93
1 1/2” 17.00 38 42 60 147 125 7.89
1 3/4” 25.00 44 52 73 178 146.5 13.4
2” 35.00 50 56 82 197 171 18.85
2 1/2” 55 63.5 68 105 267.5 203 37.86

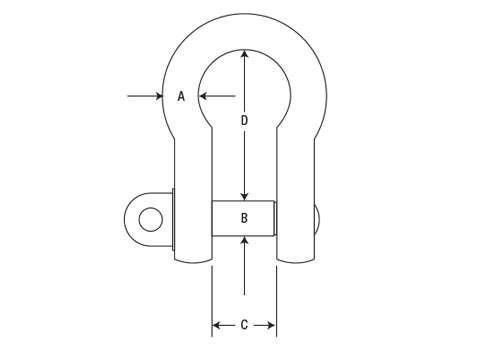

Drawings
