GOI International is globally recognised for its expertise in lifting, deck machinery, and subsea tooling. Our specialization lies in a range of spooling winches suitable to meet the specific technical and operational requirements of our clients. These spooling winches are widely used in heavy-duty offshore vessels, rigs, and shores to coil all types of ropes onto winch drums from both cranes and winches. Our spooling winches are equipped with a constant tension feature that enables wire rope to be spooled under tension.
In addition we also offer wire spooling winches on rental. Our state-of-the-art facilities are dedicated to wire rope and umbilical spooling, providing comprehensive spooling services for all types of wire rope, non-wire rope, and umbilical spooling operations.

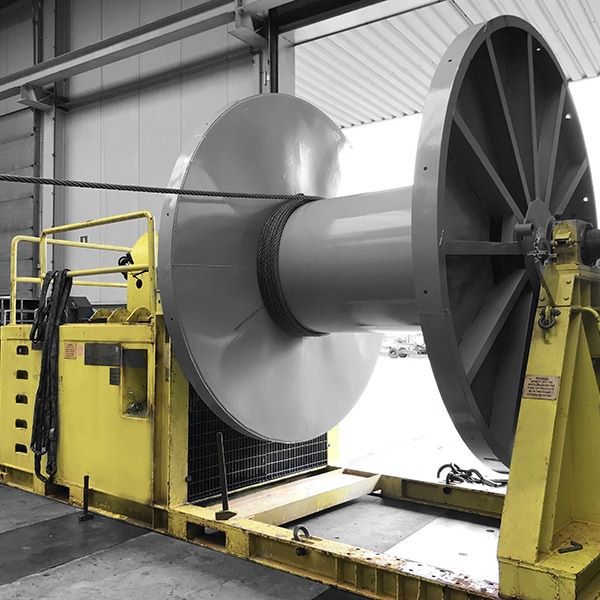

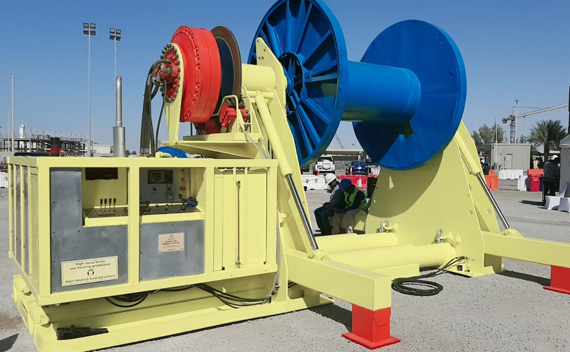

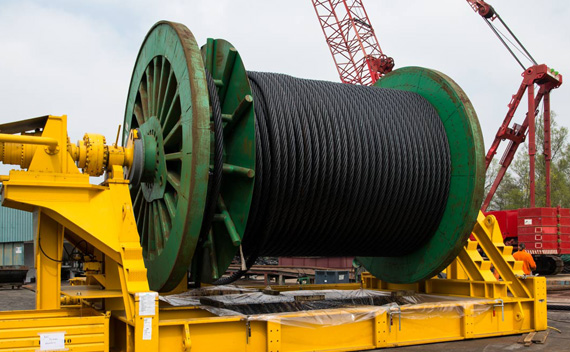

We Provide a range of spooling winches, designed to facilitate the installation or removal of wire, rope or umbilical from winches to storage reels under constant back tension. The GOI Hydraulic Spooling Winch can accept reels of various dimensions. Removable shafts of various diameters act as axles to support the reel through the centre.
| Drum Pitch Circle Diameter (mm) | Line Tension (MT) @ 250bar | Max Line Speed (m/min) |
| 500 | 21.0 | 38 |
| 1000 | 10.5 | 76 |
| 1500 | 7.0 | 113 |
| 2000 | 5.3 | 151 |
| 2500 | 4.2 | 189 |
| 3000 | 3.6 | 227 |
| 3500 | 3.1 | 265 |
| 4000 | 2.7 | 302 |
