Dependable Assortment of Manual Pallet Truck

GOI presents Toyolift’s hand pallet truck which is a manual equipment used in warehouses and retail stores for lifting, lowering, and maneuvering pallets. It comes in capacities ranging from 2.5 to 5 tons and is a cost-effective option for situations where forklifts are inaccessible.

Hand Pallet Truck

Standard: EN ISO 3691-5:2014

Toyolift manual pallet Truck is a hand-powered Truck most commonly seen in retail and personal warehousing operations. They are used mainly for lifting, lowering and steering pallets from one place to another.

The pallet is only lifted enough to clear the floor for subsequent travel. Oftentimes, pallet trucks are used to move and organize pallets inside a trailer, especially when there is no Forklift access or availability.

Available capacity 2.5 Ton to 5Ton.

For Safe operations;

Center the forks evenly under the load to maintain good balance.
Avoid overloading the truck.
Make sure the stability of the load.
Use both forks for lifting a load.
Pull rather than push loads for increased maneuverability.

Maneuvering loads using the neutral position reduces operator fatigue.
Operate at a controllable speed, since hand pallet trucks do not have brakes.
Park the pallet truck out of traffic areas in a safe, level place with the forks lowered.
The handle should be left in the up position to eliminate tripping hazards.
Avoid moving loads up or down ramps.

Parameters

HAND PALLET TRUCK
Model		TL-BF25	TL-BF35	TL-WB50
Capacity	Ton	2.5	3.5	5
Service weight	kg	70	90	105
Steering wheel	mm	ø200	ø180	ø200
Fork wheel	mm	ø80	ø75	ø84
Max. light height	h3(mm)	185	175	195
Total height	h14(mm)	1224	1214	1240
Lowered fork height	h13(mm)	85	75	88
Overall length	l1(mm)	1533/1603	1533/1603	1533/1603
Fork dimension	s/e/t	50/160/1150	50/160/1150	60/160/1150
Distance between fork-arms outside	b5(mm)	550	550	550
Ground clearance centre of wheel base	m2(mm)	16	16	16
Aisle width for pallets 1000x1200 crossways	Ast(mm)	1730/1800	1730/1800	1730/1800
Aisle width for pallets 800x1200 lengthways	Ast(mm)	1730/1800	1730/1800	1730/1800
Turning radius	Wa(mm)	1266/1336	1266/1336	1266/1336

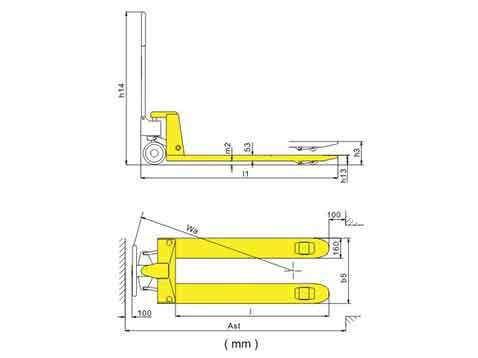

Technical Drawing

Download Product Datasheet
