Transformer monitoring & Controls

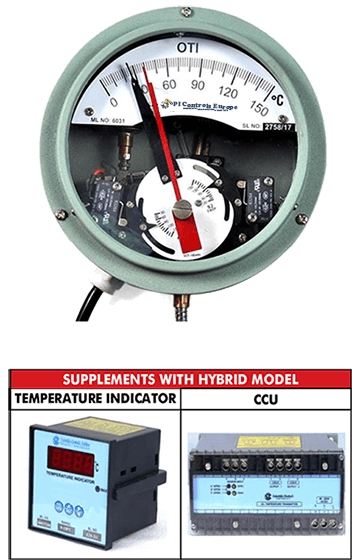

PI Control Europe 6031-H
Description:

Model 6031(H), the Instrument is used for indicating and controlling of Temperature for oil cooled transformers. Top oil is directly sensed by the sensing bulb (OTI) and Winding temperature of the transformer is simulated using CT secondary current over the Top oil temperature (WTI).

H*: Hybrid model where temperature is sensed by PT100 sensor which is embedded inside the sensing bulb.

Features:
  • 60°C angular sweep with 2°C graduation
  • Large 115mm segment Dial diameter
  • Accuracy +/-1.5% over FSD
  • Built-in thermal imaging for transformer 'HOT Spot' temperature indication(in case of WTI)
  • Up to max 2 Heavy Duty Micro Switch for control operation
  • Weather proof, Aluminum Pressure Die-Cast case for outdoor service(IP55) as per IEC 529
  • Hybrid models will be provided with Internal or External CCU.

PI Control Europe 6006-H
Description:

Model 6006(H), the Instrument is used for indicating and controlling of Temperature for oil cooled transformers. Top oil is directly sensed by the sensing bulb (OTI) and Winding temperature of the transformer is simulated using CT secondary current over the Top oil temperature (WTI).

H*: Hybrid model where temperature is sensed by PT100 sensor which is embedded inside the sensing bulb.

Features:
  • 270°C angular sweep with 2°C graduation
  • Accuracy +/-1.5% over FSD
  • Large 150mm Dial diameter
  • Built-in thermal imaging for transformer 'HOT Spot' temperature indication(in case of WTI)
  • Up to max 2 Heavy Duty Micro Switch for control operation
  • Weather proof, Aluminum Pressure Die-Cast case for outdoor service(IP55) as per IEC 529
  • Hybrid models will be provided with Internal or External CCU.

PI Control Europe 6005-H
Description:

Model 6005 (H), the Instrument is used for indicating and controlling of Temperature for oil cooled transformers. Top oil is directly sensed by the sensing bulb (OTI) and Winding temperature of the transformer is simulated using CT secondary current over the Top oil temperature (WTI).

H*: Hybrid model where temperature is sensed by PT100 sensor which is embedded inside the sensing bulb.

Features:
  • 270°C angular sweep with 1°C graduation
  • Large 150mm Dial diameter
  • Accuracy +/-1.5% over FSD
  • Built-in thermal imaging for transformer 'HOT Spot' temperature indication(in case of WTI)
  • Up to max 5 Heavy Duty Micro Switch for control operation
  • Weather proof, Aluminum Pressure Die-Cast case for outdoor service(IP55) as per IEC 529
  • Hybrid models will be provided with Internal or External CCU.
  • Optional 440Ω or 2.8KΩ potentiometer output is provided.

PI Control Europe 6007-H
Description:

Model 6007(H), the Instrument is used for indicating and controlling of Temperature for oil cooled transformers. Top oil is directly sensed by the sensing bulb (OTI) and Winding temperature of the transformer is simulated using CT secondary current over the Top oil temperature (WTI).

H*: Hybrid model where temperature is sensed by PT100 sensor which is embedded inside the sensing bulb.

Features:
  • 60°C angular sweep with 2°C graduation
  • Large 115mm Dial diameter
  • Accuracy +/-1.5% over FSD
  • Built-in thermal imaging for transformer 'HOT Spot' temperature indication(in case of WTI)
  • Up to max 4 Heavy Duty Micro Switch for control operation
  • Weather proof, Aluminum Pressure Die-Cast case for outdoor service(IP55) as per IEC 529
  • Hybrid models will be provided with Internal or External CCU.
  • Optional 440Ω or 2.8KΩ potentiometer output is provided.

PI Control Europe 1012
Features:
  • High Performance Instruments
  • Dial size : 6”, Range : 150°C, SS Stem OD X Length – 12.5 x 200 mm
  • Casing : Heavy Duty Die Cast Aluminium
  • Electrical Contact with 2 Nos. Switch Type for Alarm & Trip Mechanism

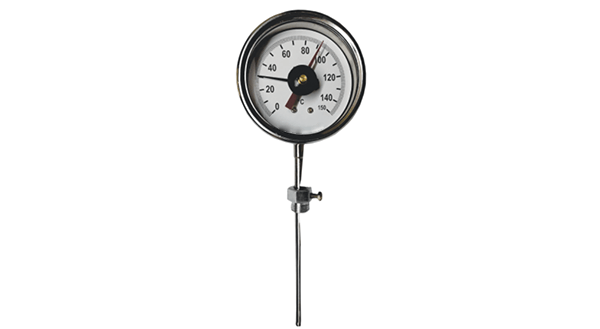

PI Control Europe GDT-MRP
Features:
  • For Small Distribution Transformer, Tank Mounted
  • MRP : Provided with Maximum Reading Pointer (Red Color)
  • Dial size : 4”, Range : 150°C, SS Stem OD X Length – 10 x 200 mm
  • Casing : AISI SS 304, Case & Bezel, weather proof

PI Control Europe GDT- (Without MRP)
Features:
  • For Small Distribution Transformer, Tank Mounted
  • Dial size : 4”, Range : 150°C, SS Stem OD X Length – 10 x 200 mm
  • Casing : AISI SS 304, Case & Bezel, weather proof

PI Control Europe 1135:100:ST
Features:
  • For Small Power & Distribution Transformer, Tank Mounted / ESP Rectier Transformer
  • Dial size : 4”, Range : 100°C, SS Stem OD X Length – 10 x 200 mm
  • Casing : AISI SS 304, Case & Bezel, weather proof
  • Electric Contact Stem Type Oil Temperature Indicator with 1 NO & 1NC Contacts
Serving Globally GOI International is serving with its strong infrastructure, technical team and well-known brand PI Controls Europe in the field of Transformer monitoring and control instruments across the world including Oman, Qatar, Saudi Arabia, Kuwait, Bahrain, Uzbekistan, Algeria, Armenia, Azerbaijan, Egypt, Ethopia, Iraq, Jordan, Kazakhstan, Kenya, Kurdistan, Lebanon, Nigeria, Sudan, Turkey, Turkmenistan, Uzbekistan, Yemen, Libya, Angola, Tanzania, Republic Of The Congo, Gabon, Equatorial Guinea, Chad, Ghana, South Sudan, Benin. We export Transformer monitoring and control instrument, including Transformer Monitoring Instruments, Oil-Cooled Transformer Control Devices, Transformer Health Monitoring Tools, Instrumentation for Transformer Control, Remote Transformer Monitoring Solutions, Transformer Condition Monitoring Instruments and Smart Transformer Control Devices of PI Controls Europe and other international brands to all the major cities like Muscat, Sohar, Salalah, Doha, Riyadh, Jeddah, Dammam, Taif, Al Khobar, Dhahran, Kuwait, Manama, Tashkent, Algiers, Yerevan, Baku, Cairo, Addis Ababa, Baghdad , Amman, Nur-Sultan, Nairobi, Erbil , Beirut, Abuja, Khartoum, Ankara, Ashgabat, Tashkent, Sanaa, Tripoli, Luanda, Dar es Salaam (Dodoma), Brazzaville, Libreville, Malabo , N'Djamena, Accra, Port Sudan, Juba, Benghazi, Tema.
We have two decades of experience in exporting and supplying high quality Instrument used for indicating and controlling Temperature for oil cooled transformers worldwide. Please contact us if looking for quick quotation, fast delivery of Ex stock Dubai, for Transformer Monitoring and Controls instruments of major international brands including PI control Europe, Siemens SITRANS TS Temperature Sensor, ABB TTH200 Temperature Transmitter, Schneider Electric TMT Series Temperature Monitoring Device, Honeywell STT700 Smart Temperature Transmitter, Endress+Hauser iTHERM TM401 Compact Temperature Sensor, Yokogawa YTA Series Temperature Transmitter Assembly, Emerson Rosemount 3144P Temperature Transmitter with HART protocol, Foxboro 84 Series Temperature Transmitter with I/A Series architecture, Krohne OPTITEMP TRA-H Resistance Temperature Detector (RTD), Omron E5CN Digital Temperature Controller
