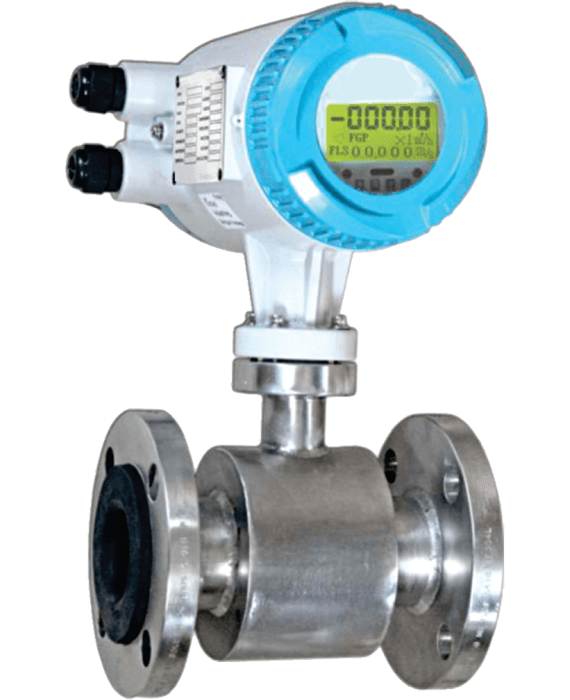

Electromagnetic Flow Meters
Flange Type
Features
  • High Accuracy
  • Insignificant Pressure Drop
  • Bidirectional Flow
  • SS Construction
  • No Moving Parts
  • 3 Line Lcd Backlit Display
  • Multiple Communication Protocols
  • Process Connection As Per
  • Asme / En / Awwa / Jis
  • Built-in Diagnostics
Applications
  • Water & Wastewater
    Water purifier, fluid metering, chemical dosing
  • Chemical Industries
    Chemical feed control
  • Food & Beverage Industries
    Water treatment, chemical dosing
  • Pharmaceutical Industries
    Process control
  • Iron and Steel Industries
    Chilled water control
  • Oil & Gas
    Wastewater
Features
Conductivity 20 μs / cm (minimum)
Accuracy ± 0.5% of span
Flow velocity 1 to 5 m/s (for calibration)
1 to 10 m/s (working range)
Display LCD with backlight
Temperature Ambient : -16°C to +50°C
Process : -20°C to +160°C
Pressure Max 20 bar
Line size 1" to 4”
Process connection Flange type
Tri-clamp type
Sandwich type
Body SS 316
Measuring tube SS 316
Electrodes SS 316, Hastelloy, Titanium
Grounding ring SS 316
Liners Hard Rubber, PTFE, PFA, Neoprene
Output 4~20mA, Pulse and Relay output
Communication Modbus, HART (Optional)
Power supply 24V DC / 230 V AC
Transmitter housing design Integral mount & remote mount
