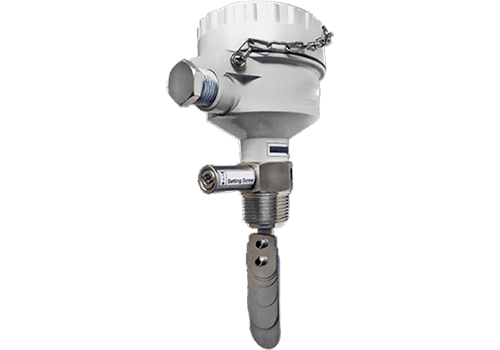

Flow switches have been designed for the direct control of fluid flow in various sizes of pipelines. These FSP series flow switches are magnetically coupled paddle type ow switches. The FSP series offers wide flexibility in the choice of line sizes as per flow ranges.
Instrument connection | 1.5" NPT/BSP (M) or Others on request |
---|---|
Set point adjustment | upto 1" to 6" pipeline |
Enclosure class | Die Cast Aluminium Flameproof suitable to Gr. IIA / IIB to IP 67 with CMRI & CCOE or SS316 |
Cable entry | 1/2” NPT (F) |
Maximum working pressure | 50 Bar |
Working temperature range | 10 - 100°C |
Pressure drop | < 150 mbar at Q maximum. (For Qmax. Refer flow range table) |
MOC of wetted parts | SS 316 |
Set point tolerance | ± 3 ~ 5 % |
Repeatability tolerance | ± 1 % |
Electrical rating | 1 A, 230 V AC/DC 50 VReed Switch 5 A, 230 V AC/DC 50 VA Micro Switch |
Measured value | Flow of fluids |
