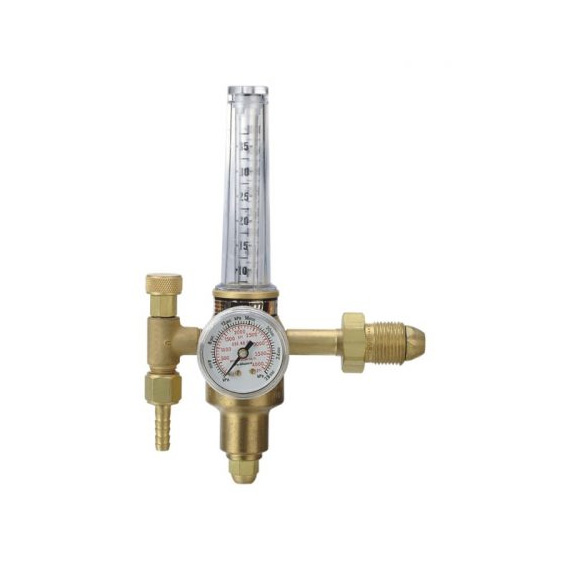

Techweld Argon Gas Regulator is constructed by full brass body. It is a single stage Regulator with Flowmeter as a unit. Flowmeter with easy to read tube and virtually unbreakable transparent polycarbonate outer connections can be requested. The product is supplied through multiple distributors.

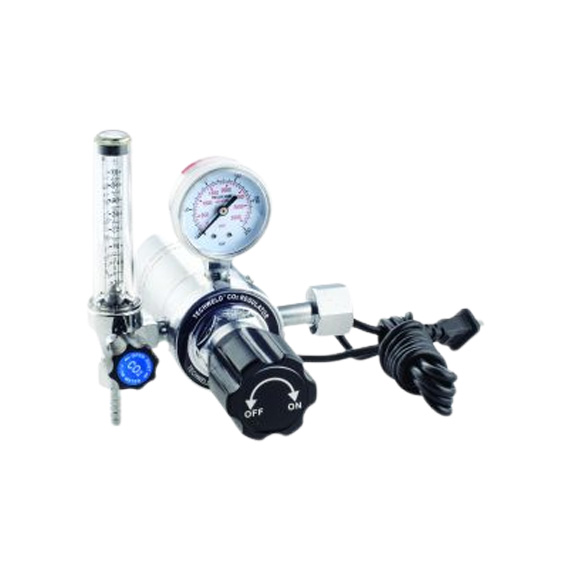

Techweld CO2 Gas Regulator is constructed by forged chrome body and chromed bonnet for maximum strength. This is the most popular CO2 gas regulator used for mig welding applications across several industries.
Model No. | Gas | Max. Inlet Pressure (Bar) | Max. Outlet Pressure (Bar) | Inlet Connection | Outlet Connection |
---|---|---|---|---|---|

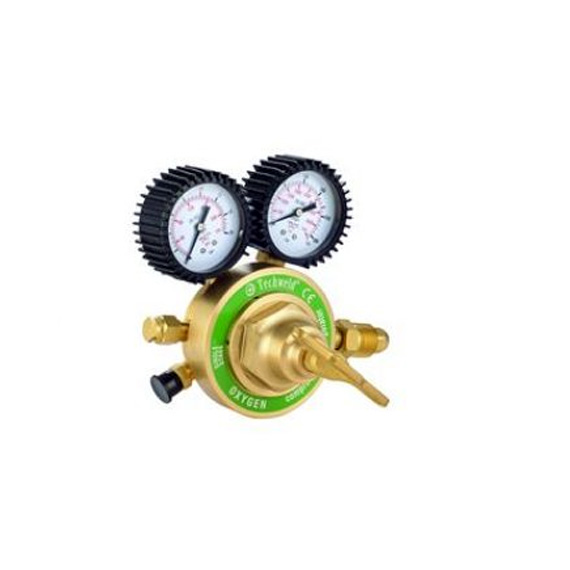

TRO 002 | Oxygen | 200 | 10 | CGA 992 | 9/16" - 18 |
TRO 002 - K | Oxygen | 200 | 10 | CGA 540 | 9/16" - 18 |
Model No. | Gas | Max. Inlet Pressure (Bar) | Max. Outlet Pressure (Bar) | Inlet Connection | Outlet Connection |
---|---|---|---|---|---|

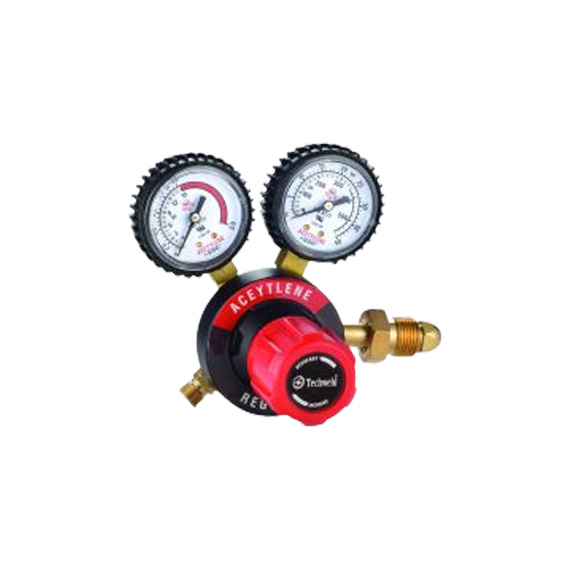

TRA 002 | Acetylene | 25 | 1.0 | CGA 993 | 9/16" - 18 |
TRA 002 - K | Acetylene | 25 | 1.0 | CGA 300 | 9/16" - 18 |
Model No. | Gas | Max. Inlet Pressure (Psi) | Max. Outlet Pressure (Psi) | Inlet Connection | Outlet Connection |
---|---|---|---|---|---|
TRO 001 | Oxygen | 3000 | 5 - 125 | CGA 992 | 9/16" - 18 |
TRO 001 - K | Oxygen | 3000 | 5 - 125 | CGA 540 | 9/16" - 18 |
Model No. | Gas | Max. Inlet Pressure (Psi) | Max. Outlet Pressure (Psi) | Inlet Connection | Outlet Connection |
---|---|---|---|---|---|

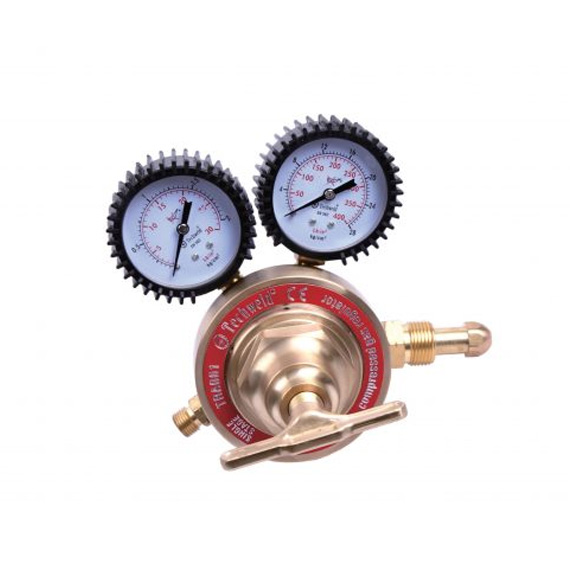

TRA 001 | Acetylene | 350 | 2 - 15 | CGA 993 | 9/16" - 18 |
TRA 001 - K | Acetylene | 350 | 2 - 15 | CGA 300 | 9/16" - 18 |
