GOI International, UAE proudly supplies a full range of Green Pin lifting and rigging solutions, renowned worldwide for their high-quality, reliability, and international certifications like DNV, EN standards, and CE marking. Our inventory includes the most in-demand shackles, sockets, chains, and master link assemblies designed for heavy lifting, marine, construction, oil & gas, and offshore applications.

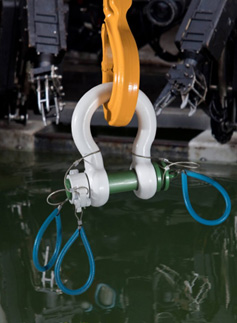

Our comprehensive collection of Green Pin Shackles ensures safety and performance under the toughest working conditions. Available in multiple configurations, they comply with international lifting regulations and offer superior fatigue resistance, durability, and traceability.

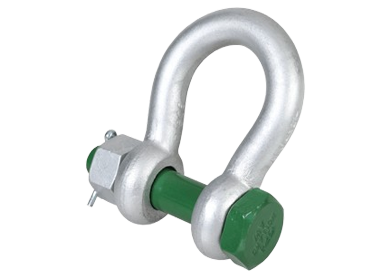

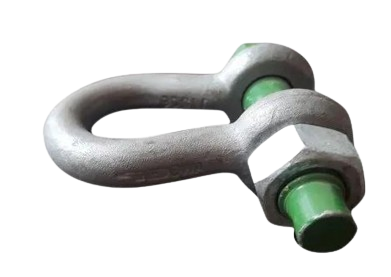

A high-performance bow shackle with a safety bolt ideal for permanent or long-term lifting setups.
| Specification | Details |
| Type | Bow Shackle |
| Material | High tensile steel, Grade 6 |
| Finish | Hot-dip galvanized |
| Pin Type | Safety bolt and nut with cotter pin |
| WLL Range | 0.33t to 85t |
| Standards | EN 13889, DNV 2.7-1, CE Marked |
Green Pin G-4163 – Bow Shackle with Safety Bolt: Ideal for rigging setups requiring secure pin retention and safety in dynamic lifting conditions
Suitable for temporary lifting, featuring a screw pin for easy installation.
| Specification | Details |
| Type | Bow Shackle |
| Material | High tensile steel, Grade 6 |
| Finish | Hot-dip galvanized |
| Pin Type | Screw collar pin |
| WLL Range | 0.33t to 55t |
| Standards | EN 13889, CE Marked |
Green Pin G-4161 – Bow Shackle with Screw Collar Pin: Quick to install, ideal for temporary connections and lighter lifting applications.
Dee shackle with safety bolt for inline lifting forces and confined space applications.
| Specification | Details |
| Type | Dee (D) Shackle |
| Material | High tensile steel, Grade 6 |
| Finish | Hot-dip galvanized |
| Pin Type | Safety bolt and cotter pin |
| WLL Range | 0.5t to 55t |
| Standards | EN 13889, DNV 2.7-1 |
Green Pin G-4153 – Dee Shackle with Safety Bolt: Slim profile for tighter clearances; designed for inline load paths.
Designed for extreme load conditions in offshore, marine and industrial sectors.
| Specification | Details |
| Type | Heavy Duty Bow Shackle |
| Material | Alloy steel, quenched and tempered |
| Finish | Hot-dip galvanized |
| Pin Type | Safety bolt and nut with cotter pin |
| WLL Range | 120t to 1500t |
| Standards | DNV Type Approved, ABS, CE Marked |
Green Pin P-6036 – Heavy-Duty Bow Shackle with Safety Bolt: Built for heavy-load lifting; ideal for offshore, marine, and structural rigging.
Optimized for use with synthetic slings and reduced bending radius.
| Specification | Details |
| Type | Bow Shackle (Wide Body) |
| Material | Alloy steel, Grade 8 |
| Finish | Hot-dip galvanized |
| Pin Type | Safety bolt with nut and cotter pin |
| WLL Range | 17t to 1250t |
| Application | Heavy lifting, sling protection, reduced wear |
Green Pin P-6033 – Wide Body Bow Shackle (Sling Shackle): Designed to reduce wear on synthetic slings, with increased surface area for better load distribution.
Our offering includes Green Pin spelter sockets (both open and closed types) that serve as high-strength terminations for steel wire ropes. Suitable for high-load static applications such as cranes, mooring, and structural suspensions.
| Specification | Details |
| Type | Socket (Open & Closed) |
| Material | Cast steel or forged steel |
| Rope Diameter | 6 mm to 160 mm |
| Finish | Self-colored or painted |
| Application | Wire rope terminations, cranes, structural |
| Compliance | EN 13411-6, DNV, Lloyd's Register |
These sockets meet all major certifications and are manufactured from high-tensile steel.

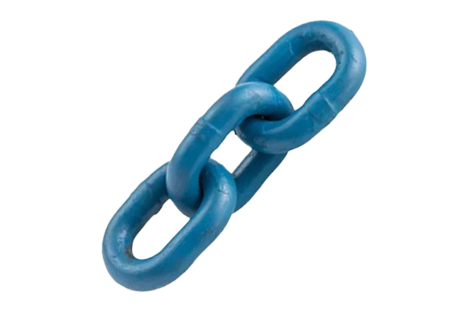

We supply Grade 100 alloy steel chains and compatible fittings from Green Pin, perfect for overhead lifting and extreme-duty applications.
| Specification | Details |
| Grade | Grade 100 (Alloy Steel) |
| Chain Size Range | 6 mm to 16 mm |
| Finish | Painted or powder-coated |
| WLL | Higher than Grade 80 by 25% |
| Compatible Fittings | Hooks, links, couplers |
| Standard | EN 818-4, CE Certified |
These chains provide 25% higher lifting capacity compared to Grade 80.
For multi-leg sling assemblies and critical lifting applications, we offer Green Pin Master Link Assemblies including:
These components are ideal for offshore containers, shipyards, heavy fabrication units, and certified rigging systems.
Used in 1-leg to 4-leg sling assemblies, certified for offshore lifting.
| Specification | Details |
| Models | P-6810 (Master Link), P-6820 (Master Link Assembly) |
| Material | Alloy steel, quenched and tempered |
| Finish | Painted or galvanized |
| Application | Lifting slings, offshore containers, spreader beams |
| Certification | DNV 2.7-1, EN 1677, CE Marked |
Contact GOI International today for product availability, technical datasheets, and expert consultation.
